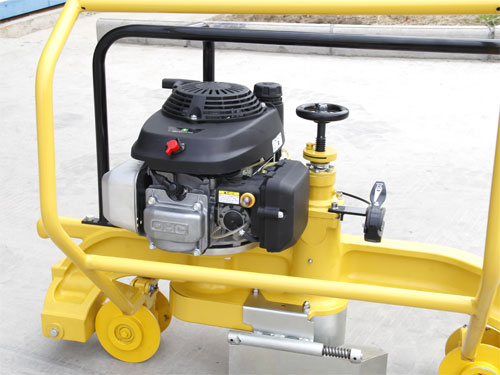

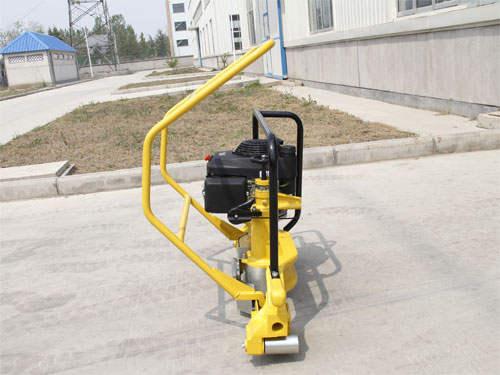

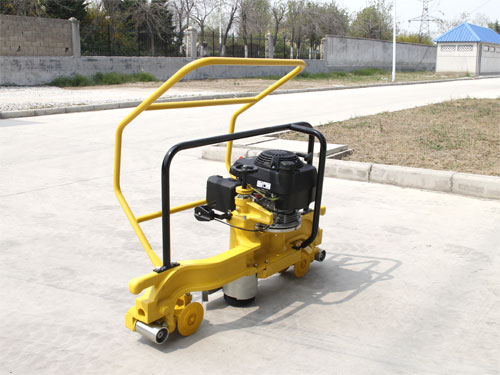

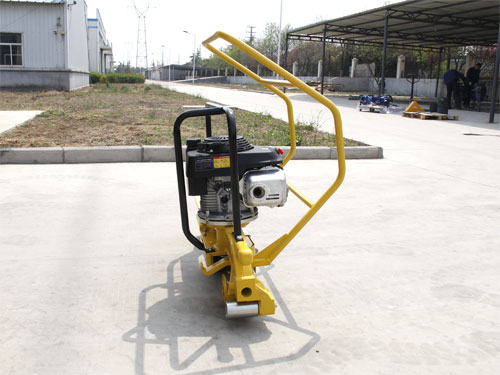

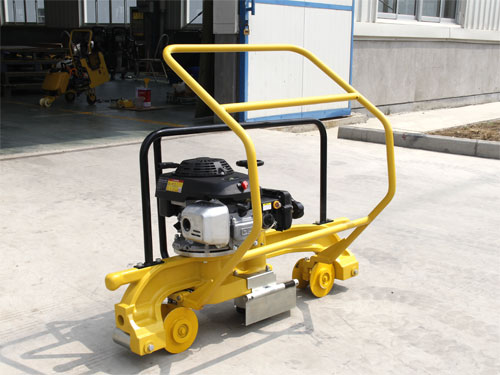

该机器主要是专于精确打磨轨头,以及用于打磨钢轨铝热无缝焊接或加强焊接以及钢轨磨损所产生的毛刺,修整轨头轮廓,达到标准要求。机体采用高强度铝合金架,装有偏向防滑导轮,可打磨轨头的两侧面及顶面,是铁路工务进行轨头打磨的专用设备,填补目前打磨机领域的空白。
Mainly for precisely grinding the rail headand grinding the burr generated from the rail aluminum hot seamless welding orreinforcing welding and the rail wearing , trimming the rail head contour tomeet the standard requirements. High-strength aluminum alloy frame equippedwith anti-skid guide wheel, which can polish the two sides and top surfaces ofthe rail head. A special equipment for rail track head grinding in RailwayEngineering, it fills the gap in the field of grinder at present.
产品特点:Product characteristics:
1、操作轻便适合各种铁路钢轨头外轮廓上平面,侧面及过渡圆弧的打磨作业。
Easy operation and applicable for grindingthe upper plane, side and transition arc of the outer contour of various railheads.
2、适合磨削钢轨焊接缝的行车面。
Applicable for grinding the driving surfaceof rail welding seam.
3、具有仿形磨削功能,可使钢轨焊接缝经磨削后得到平顺的表面。
Profiling grinding function, make the railwelding seam get a smooth surface after grinding.
4、打磨机两端接上加长装置后,可用来打磨轨面的波浪磨耗。
Connected with an extension device, it canbe used to polish the wave abrasion of the rail surface.
5、调整进给手轮,可精确的任意设定磨削深度。
Adjusting the feed handwheel to set thegrinding depth accurately and arbitrarily.
6、发动机针对打磨作业特殊性,专利设计研发润滑系统,可方持久倾斜90度,以适应轨头侧面的打磨。
Designed and developed with a patentedlubrication system, able to be tilted for 90 degrees longer to adapt to thegrinding of the side of the rail head.

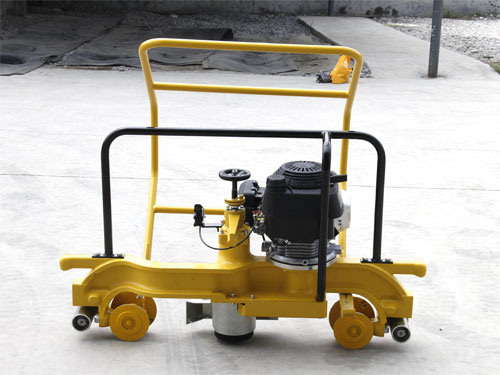

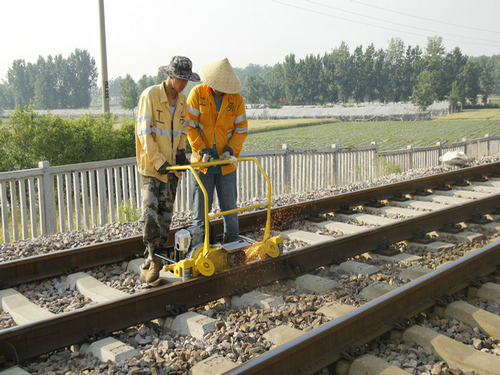

7、配备两个支撑滚轮和两个导轮,一个人就可以轻松使打磨机能够在钢轨上移动和作业,轻便、快捷。
Equipped with two supporting rollers andguide wheels, one person can easily make the grinder move and work on the rail,light and fast.
8、机器采用电喷发动机,喷油量自动调节,化油器不用调整,机器的启动和使用不受海拔高度、环境温度的影响。
Equipped with electronic injection engine,automatically adjust the fuel injection quantity, no need to adjust thecarburetor, the start-up and usage are not affected by the altitude and theambient temperature.产品名称 | NGM-4.5磨轨机 | |
发动机 | 发动机型号 | 1P73F |
发动机型式 | 单缸、风冷、四冲程 | |
排 量 ml | 190cc | |
最大输出功率kW /r/min | 5.1/4000 | |
油 耗g/kW·h | ≤480 | |
机器重量(净重) kg | 75 | |
砂轮规格 | 125*55*65 | |
砂轮转速 | 4400 rpm | |
仿形轮距 | 1m | |
升降高度 | 70mm | |
行走方式 | 手推式 | |
打磨位置调节方式 | 手轮螺旋调节 | |
噪声值 | ≦100 | |
外形尺寸 | 1150 x 570 x 1000mm | |
包装 | 1236x660x1050mm |
