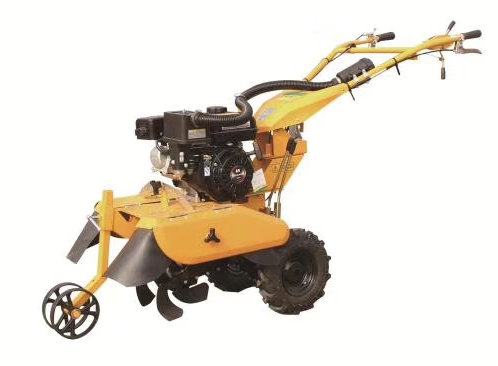

型号名称Model | 3TGQ-4型微耕机 Mini cultivator |
配套动力Mating engine | 170FA |
型式type | 单缸、风冷、四冲程 Single-cylinder/ air-cooling/ four stroke |
排量ml Displacement | 208 |
标定功率kW rated power | 4.5kw/3600r/min |
启动方式 starting method | 反冲式手拉启动Recoil start |
油箱容积L Fuel tank capacity | 3.6 |
燃油标号 fuel type | 92#以上汽油gasoline 92# and above grade |
机油型号oil type | CD级或SAE10W-30、15W-40 Level CD or SAE10W-30、15W-40 |
主离合方式main clutch type | 皮带涨紧式 belt tention type |
连接方式connection type | 销轴直连Pin shaft directly connected |
传动方式driving type | （皮带/齿轮）复合传动 (belt/gear) compound drive |
旋耕后地表平整度 cmSurface flatness after rotary tillage | ≤60 |
碎土率 soil broken rate | ≥50% |
净重Kg Net weight | 92 |
1、采用齿轮传动，四驱行走。
Gear transmission, four-wheel drive.
2、操作把手可360°旋转，操作灵活方便。
360° rotatable handlebar, flexible andconvenient to operate.
3、采用多级过滤，拆装方便，防尘效果好。
Multistage filter, easy to disassemble andinstall with good dust proof effect.
4、具有微耕、开沟功能，工作效率高。
Micro- tillage, ditching function, high efficiency.
